- Material inspection documents
- EN 10204:2004 types 2.2 and 3.1 requested at order; 3.1 tests linked to the actual batch
- Supply quality checks
- Tensile, Brinell hardness, microstructure, chemical and Charpy testing support; supplier-based QA and traceability, not an independent laboratory Service
- EN-GJL-150C bar specification
- Annealed grey iron; informative hardness 110–180 HB. Not suitable for hardening. Section-dependent minimum tensile values 110/100/90/80 N/mm² for 20–50/>50–100/>100–200/>200–400 mm sections. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJL-150C-A bar specification
- Annealed special grey iron; minimum tensile strength 200 N/mm² for listed sections 20–400 mm and informative hardness 110–180 HB. Not suitable for hardening. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJL-200C bar specification
- Grey iron with informative hardness 140–210 HB; limited strength/wear resistance. PDF mechanical table mislabels its grade as 250C, so tensile data require clarification. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJL-250C-PHOS bar specification
- Phosphorus-alloyed grey iron for wear applications; informative hardness 190–260 HB. Sheet contains an inconsistent section-boundary sign; confirm mechanical table before specification. Not recommended for hardening. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJL-300C bar specification
- Higher-strength grey iron, informative hardness 200–270 HB; hardenable. Minimum tensile values 220/205/195/185 N/mm² for the listed 20–50/>50–100/>100–200/>200–400 mm sections. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.

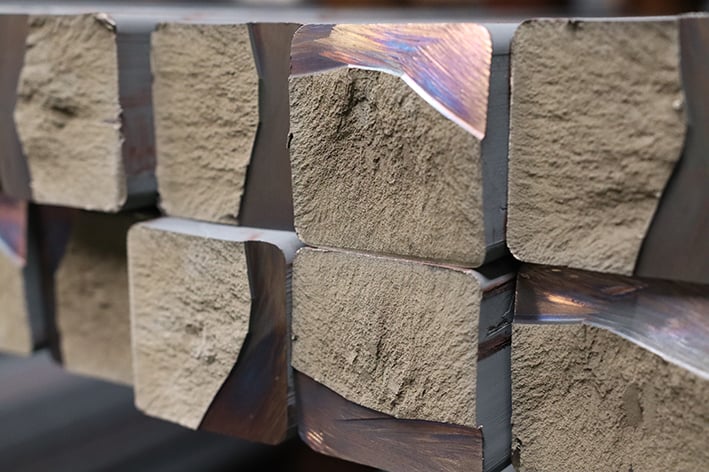

- EN-GJS-400-15C bar specification
- Ferritic ductile iron, informative hardness 120–180 HB. For sections 20–60/>60–120/>120–400 mm, minimum tensile strengths 400/390/370 N/mm² and elongations 15/14/11%. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJS-400-18C-LT bar specification
- Low-temperature ductile iron, informative hardness 120–180 HB. At −20 °C, impact-energy average/minimum is 12/9 J for 20–60 mm and 10/7 J for >60–400 mm sections; application requirements agreed. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJS-500-14C bar specification
- Solution-strengthened ductile iron, informative hardness 170–215 HB. Section-dependent minimum tensile strengths 500/480/470 N/mm² and elongations 14/12/10% for 20–60/>60–120/>120–400 mm. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJS-500-7C bar specification
- Ductile iron, informative hardness 150–230 HB. For sections 20–60/>60–120/>120–400 mm, minimum tensile strengths 500/450/420 N/mm² and elongations 7/7/5%. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJS-600-3C bar specification
- Hardenable ductile iron, informative hardness 180–250 HB. PDF gives minimum elongation 3% for its listed sections, differing from the webpage range; ordered specification to resolve the difference. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJS-700-2C bar specification
- Hardenable ductile iron, informative hardness 210–305 HB. PDF minimum proof strength for >120–400 mm is 350 N/mm², differing from webpage range; use agreed technical documentation. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJS-800-2C bar specification
- Hardenable ductile iron, informative hardness 240–330 HB. PDF round range 41–140 mm differs from webpage 44–140 mm; larger-section properties carry a written-agreement proviso. PDF round range 41–140 mm; square 40 × 40–280 × 280 mm, with availability and webpage discrepancy to be confirmed. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJS-450-12C bar specification
- For 20–60 mm section, minimum proof/tensile strength 310/450 N/mm² and elongation 12%; larger-section properties are to be agreed. PDF informative hardness 160–210 HB differs from webpage 150–230 HB. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJS-550-6C bar specification
- For 20–60 mm section, minimum proof/tensile strength 380/550 N/mm² and elongation 6%; larger-section properties to be agreed. Informative hardness 190–255 HB. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
- EN-GJL-250C bar specification
- Grey iron with informative hardness 170–240 HB. Minimum tensile values 195/180/165/155 N/mm² for 20–50/>50–100/>100–200/>200–400 mm sections. Not recommended for hardening. Grade-sheet profile range round 41–440 mm and square 40 × 40–280 × 280 mm; rectangular and non-standard by agreement. Properties depend on section and mid-radius test location; hardness is informative. Grade-sheet ranges are not current stock availability.
