Technical details

V236 operating limits

Cut-in 3 m/s; cut-out 31 m/s. Standard temperature range -15°C to 23°C, with derating from 23°C to 45°C; high-ambient variant available. IEC S or S,T; maximum sound power 115.3 dB(A).

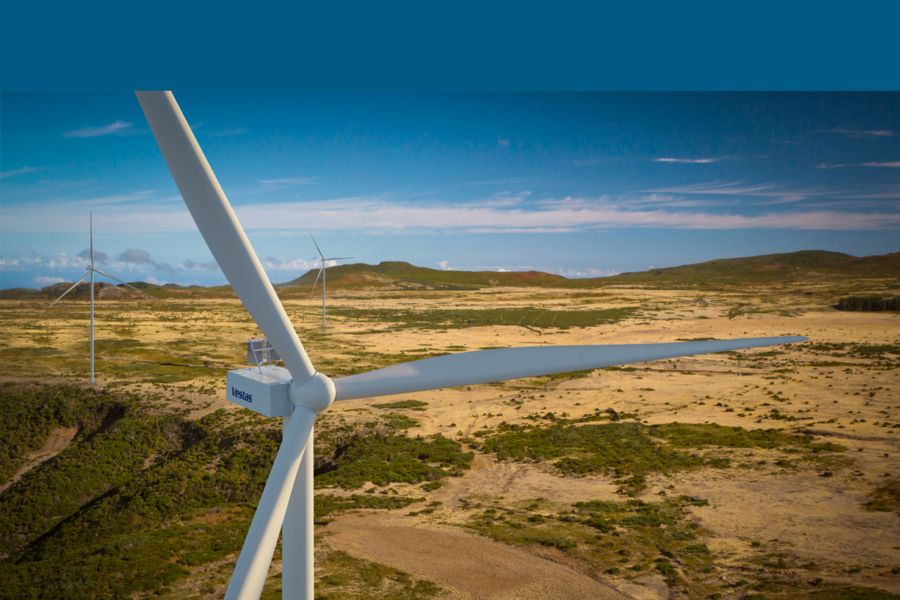

V172-7.2 MW specifications

Onshore turbine family with 7.2 MW rating and 172 m rotor. Low to medium wind; IEC S; cut-out 25 m/s.

V162-7.2 MW specifications

Onshore turbine family with 7.2 MW rating and 162 m rotor. Medium to high wind; IEC S; 6.5, 6.8 and 7.2 MW operating modes. Maximum sound power is 105.5 dB(A), compared with 104.6 dB(A) at 6.8 MW.

V162-6.2 MW specifications

Onshore turbine family with 6.2 MW rating and 162 m rotor. Low to medium wind with wider site applicability; IEC S; cut-out 25 m/s.

V150-6.0 MW specifications

Onshore turbine family with 6 MW rating and 150 m rotor. Medium to high wind; IEC S; cut-out 25 m/s. Hub heights of 105–166 m depend on configuration.

V163-4.5 MW specifications

Onshore turbine family with 4.5 MW rating and 163 m rotor. Low to medium wind; IEC S; cut-out 24 m/s; temperature derating above 27°C.

V150-4.5 MW specifications

Onshore turbine family with 4.5 MW rating and 150 m rotor. Low wind; cut-out 24.5 m/s; temperature derating above 23°C.

V150-4.2 MW specifications

Onshore turbine family with 4.0/4.2 MW rating and 150 m rotor. Low wind; IEC IIIB; cut-out 22.5 m/s; temperature derating above 30°C.

V136-4.5 MW specifications

Onshore turbine family with 4.5 MW rating and 136 m rotor. Low to medium wind; IEC IIB; cut-out 32 m/s; temperature derating above 23°C.

V136-4.2 MW specifications

Onshore turbine family with 4.0/4.2 MW rating and 136 m rotor. Low to medium wind; IEC IIB/S; cut-out 25 m/s. An Extreme Climate version is available.

V126-3.45 MW specifications

Onshore turbine family with 3.45 MW rating and 126 m rotor. Medium wind and high turbulence; cut-out 22.5 m/s. Wind-class applicability requires configuration review.

V117-4.2 MW specifications

Onshore turbine family with 4.0/4.2 MW rating and 117 m rotor. Medium to high wind; Typhoon option; cut-out 25 m/s.

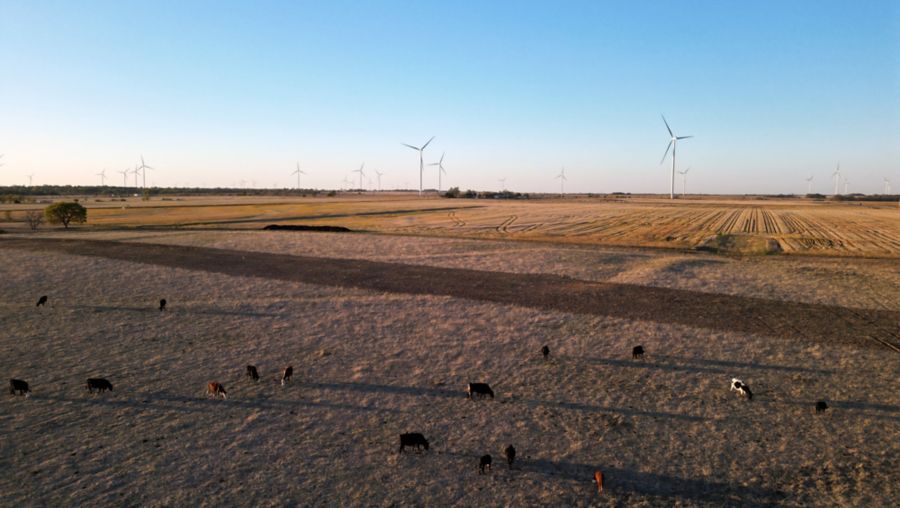

V120-2.2 MW specifications

Onshore turbine family with 2.0/2.2 MW rating and 120 m rotor. Stable low to medium wind; IEC IIB/S; cut-out 18 m/s and restart 16 m/s.

V110-2.0 MW specifications

Onshore turbine family with 2 MW rating and 110 m rotor. Low to medium wind; IEC IIIA; cut-out 21 m/s and restart 18 m/s.

VestasOnline and VestasDeveloper

VestasOnline provides service schedules/reports, documents, billing, blade-condition records, safety alerts and support requests. VestasDeveloper exposes Service Scheduling and Service Orders APIs through requested access.

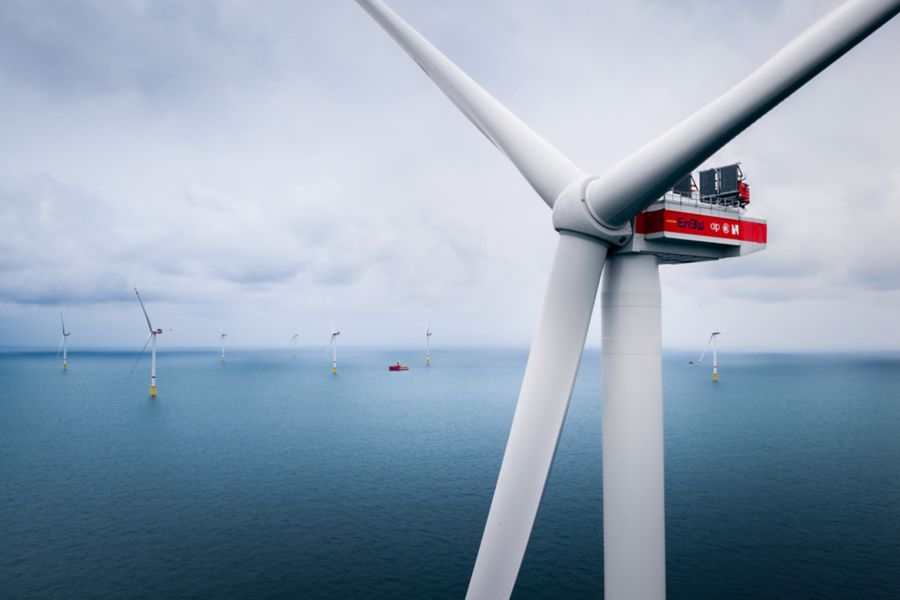

V236-15.0 MW specifications

Offshore turbine family: 15 MW, 236 m rotor, 115.5 m blades, 50/60 Hz full-scale converter and medium-speed gearbox. Tower height is site-specific.
