Technical details

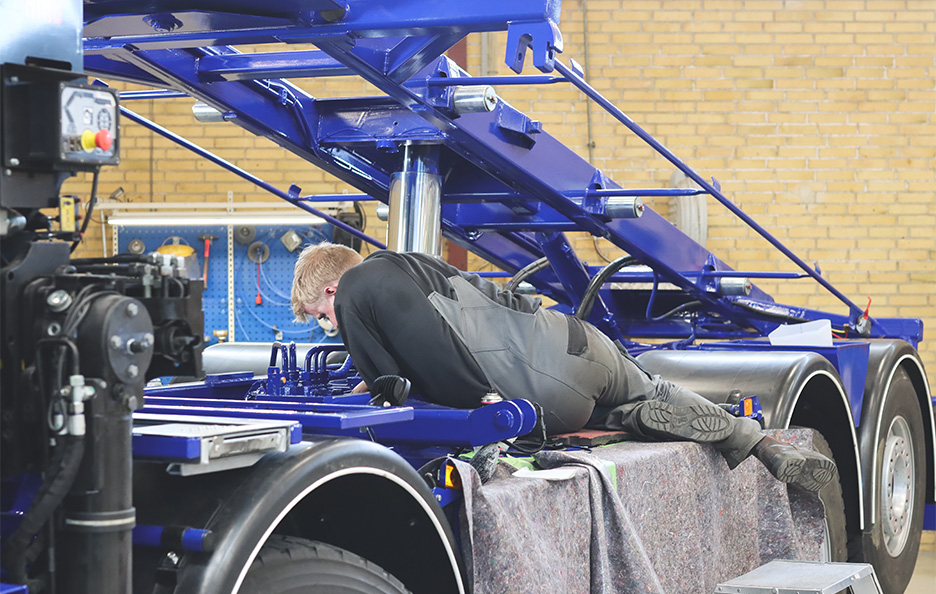

Cable-hoist model ratings

September 2021 sheets: CLF 219 S 18 t tip/14 t pull; CLF 326 S 22 t tip/20 t pull; CLF 432 S 25 t tip/28 t pull. Chassis and container configuration determine installation.

Compact crawler example

BG Lift M 250: 2500 kg at 1.5 m; 780 mm closed width. Optional jib provides up to 16 m lifting height with 650 kg at the stated vertical configuration.

Access-platform example

CELA DTTruck 15: 15 m working height, 7 m outreach and 230 kg standard basket. Working envelope and dimensions depend on chassis; maximum values are not simultaneous performance guarantees.

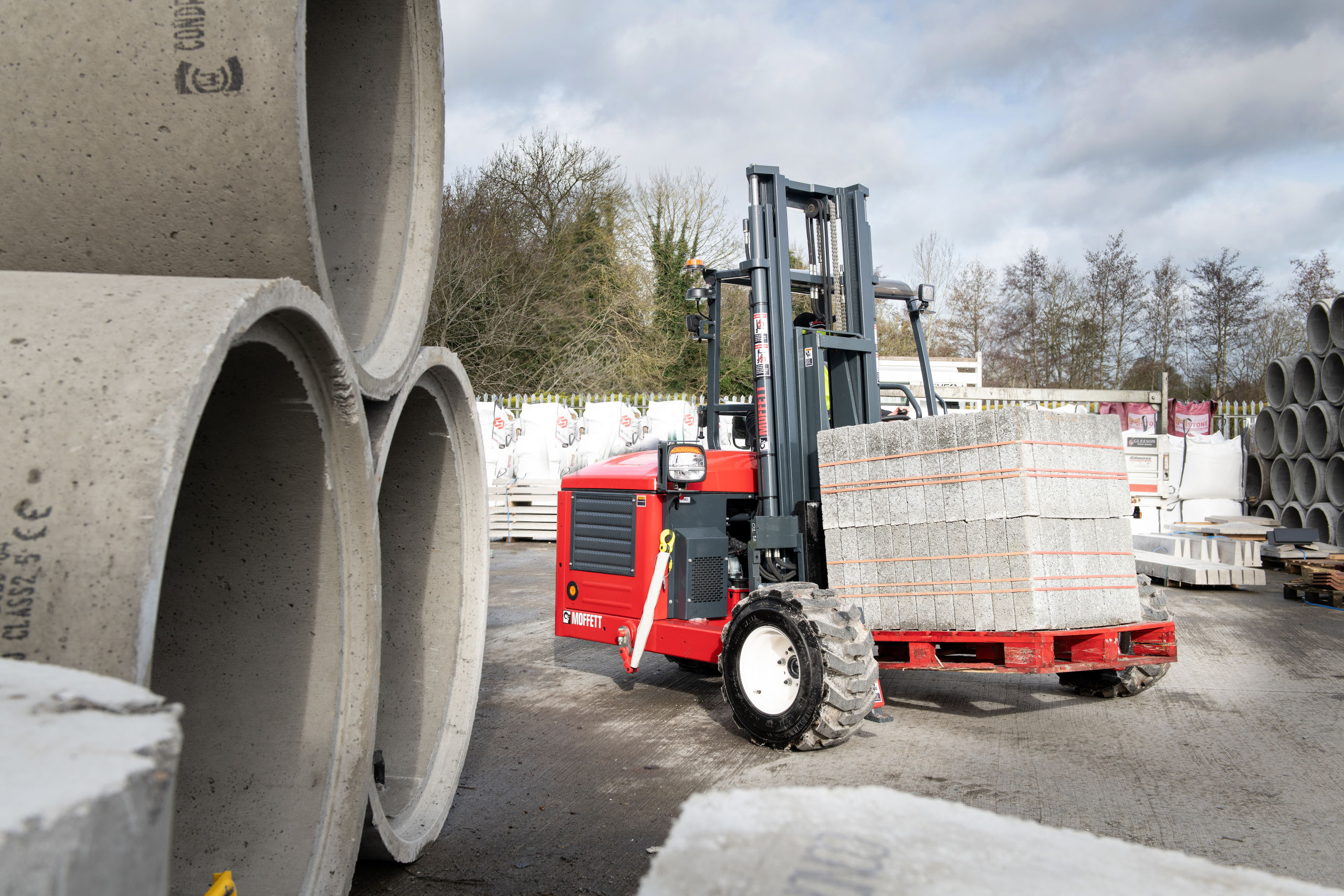

Forklift load ratings

MOFFETT M 4 NX V and E 4 NX brochures list 2000 kg or 2500 kg at 600 mm load centre according to model.

Felling-attachment limits

600/600 Light grapples specify 600 mm felling diameter and 475/410 kg respectively; Super Light 500 specifies 500 mm and 310 kg. The 450 bunching head specifies 450 mm and 575 kg.

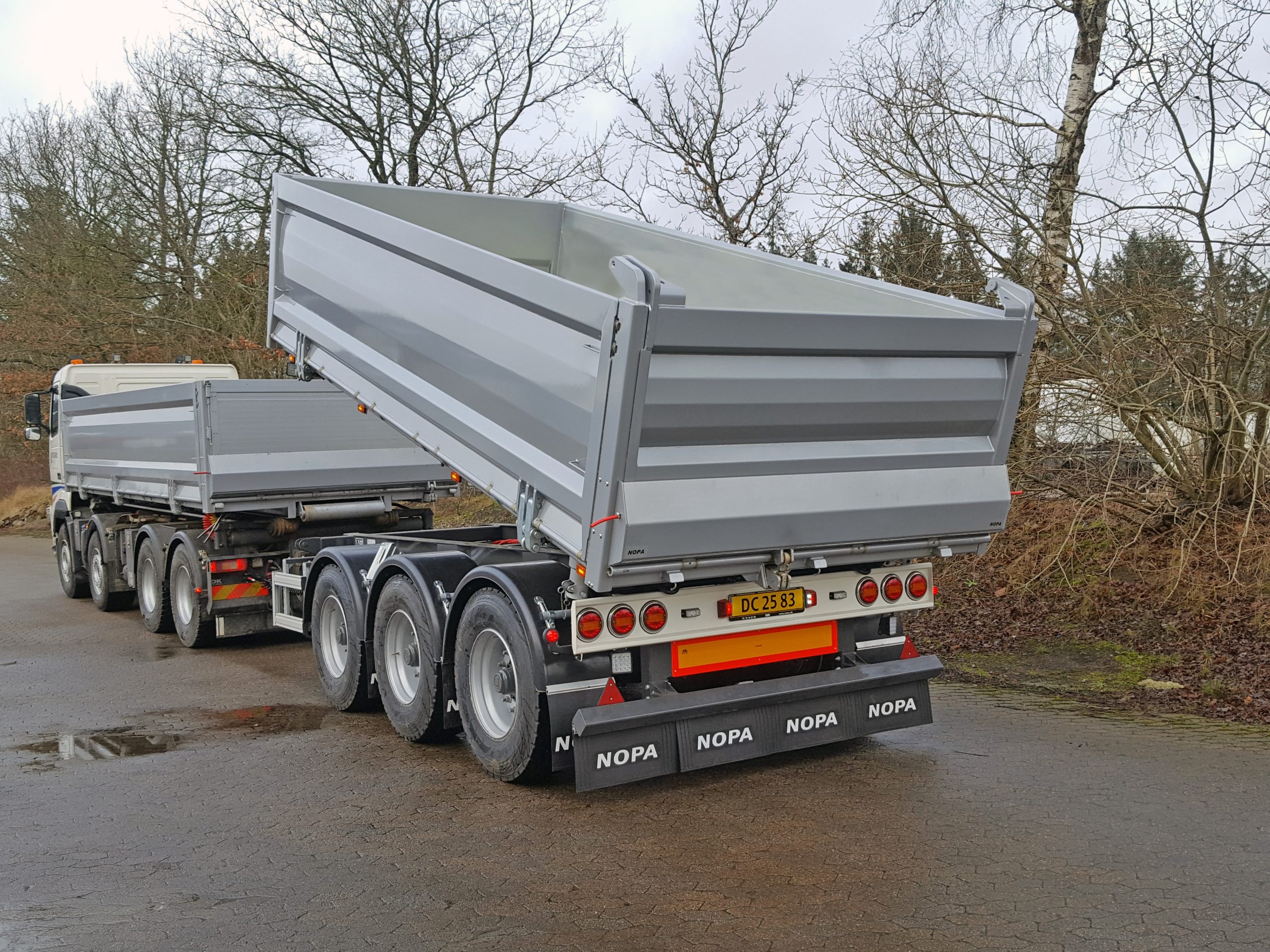

Body materials

NOPA CPL 320 and FTPLH 320 use 5 mm Hardox 450 floor; FTS 320 uses 4 mm. Materials and dimensions are model-specific.

Business origin

Established in 1962.

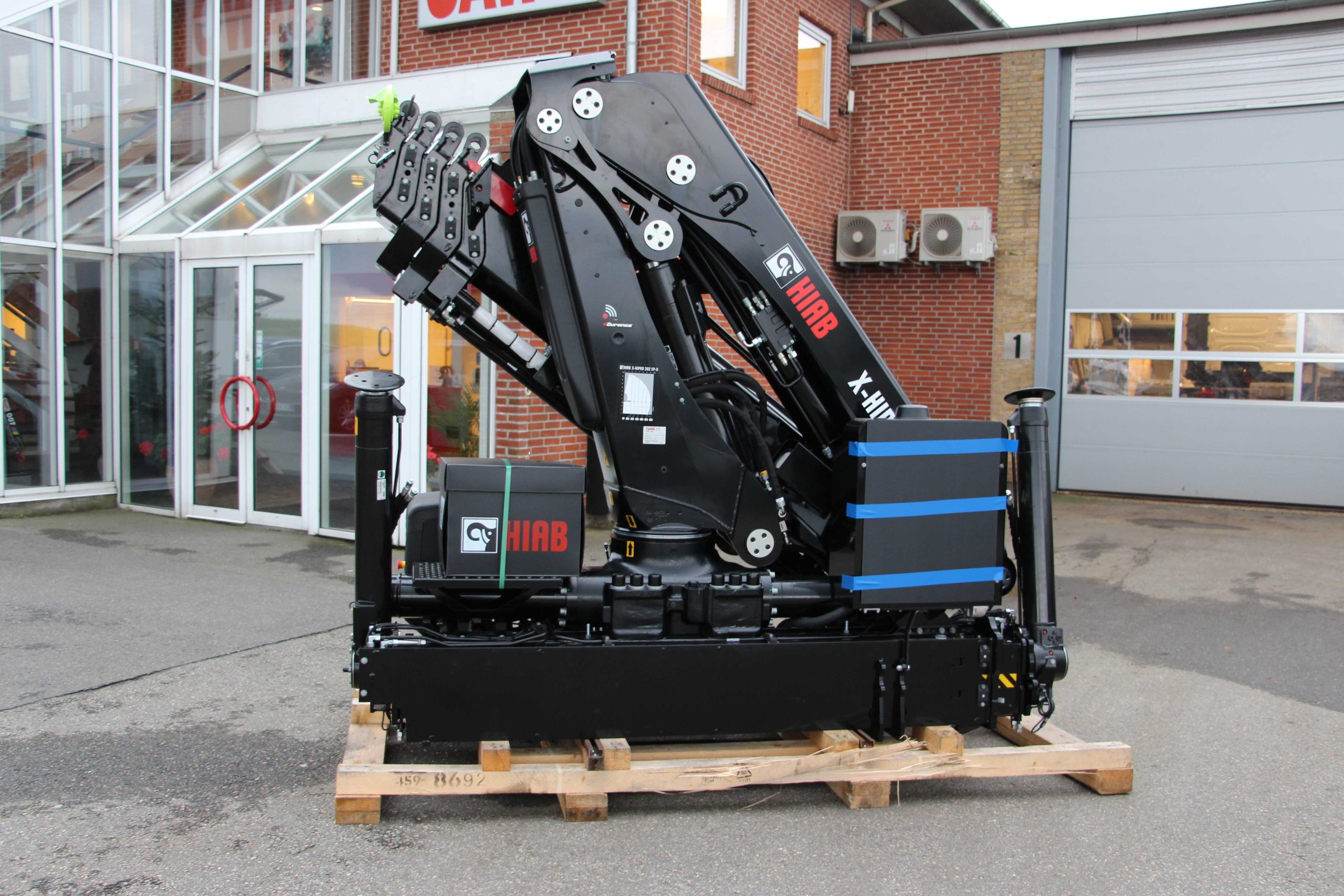

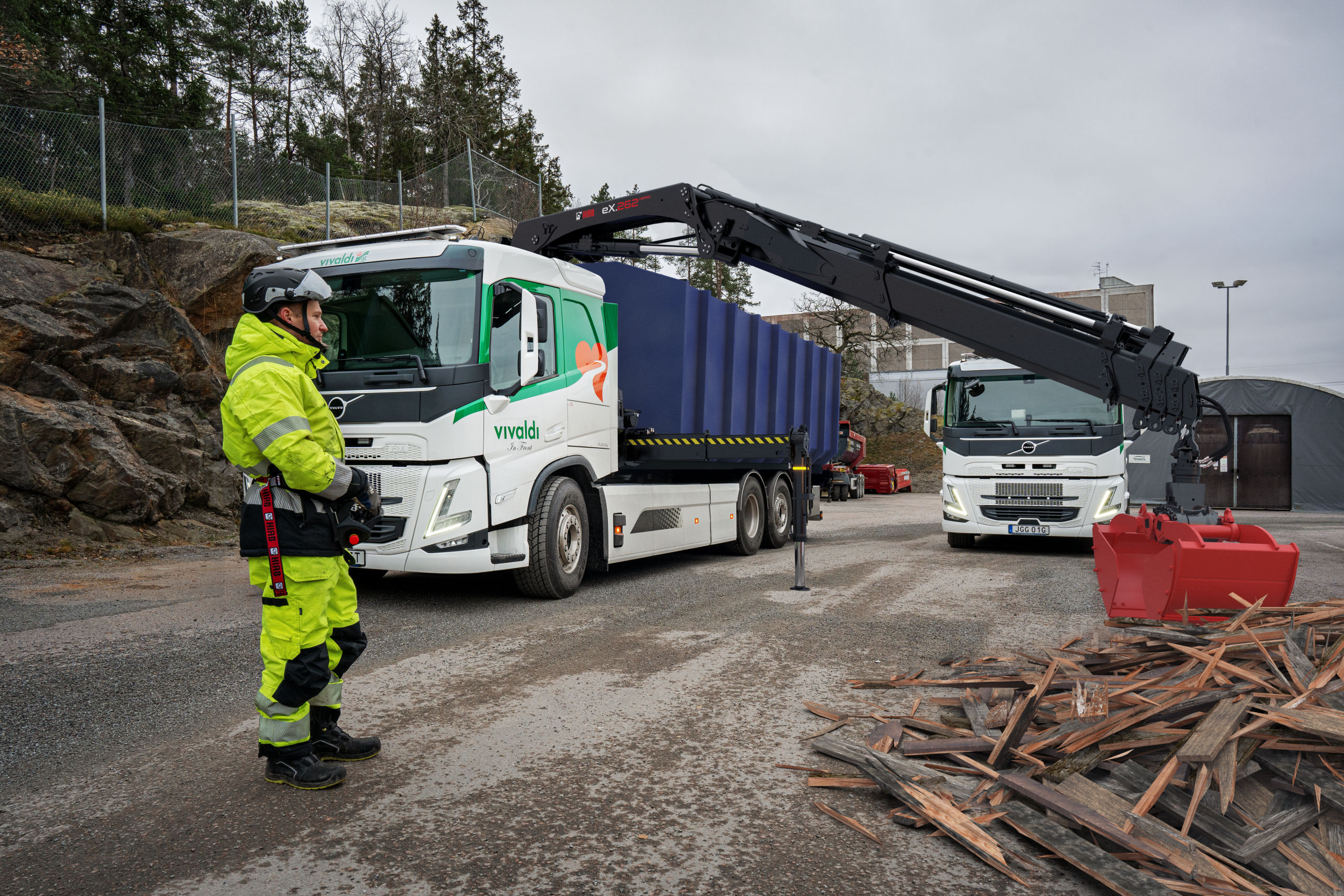

Loader-crane lifting-moment segment

HIAB and EFFER standard segment: 1–40 tonne-metres of lifting moment; allowable load depends on outreach and configuration.

Heavy-crane lifting-moment segment

HIAB and EFFER heavy segment: 40–300 tonne-metres of lifting moment; allowable load depends on outreach and configuration.

CLF 6 S / 8 S / 10 S, September 2021

Rear tipping for two-axle vehicles; respective tip/pull capacities 6, 8 or 10 t; mounting weight 950–1,050 kg and height 220 mm; maximum container length varies from 3,000 to 5,000 mm with version. High-strength steel, blasted, primed and finish-painted.

CLF 219 S installation envelope, September 2021

Two-axle chassis; maximum container length 6,200 mm; mounting weight 1,700–1,900 kg; mounting height 242 mm; approximately 19 m/min pulling speed.

CLF 326 S-3 W installation envelope, September 2021

Three- or four-axle chassis; maximum container length 7,000 mm; mounting weight 1,950–2,150 kg; mounting height 242 or 302 mm; approximately 19 m/min pulling speed.

CLF 432 S-3 W installation envelope, September 2021

Four-axle chassis; container length 5,000–7,500 mm; mounting weight 2,200–2,400 kg; mounting height 242 or 302 mm; approximately 19 m/min pulling speed.

HIAB T-CLX 009, March 2016

009-1 and 009-2 configurations: 0.95 tonne-metres lifting moment; recommended oil flow 5 L/min at 18.5 MPa. Outreach and load vary by configuration.

600 and 600 Light grapple hydraulics

Maximum opening 1,300 mm and recommended pressure 250 bar. Standard 600 has 90° tilt and an optional 350 mm accumulation attachment adding 75 kg.

450 feller-buncher configuration

450 mm felling diameter, 575 kg mass and 1,950 mm height; recommended pressure 250 bar; 14 cc motor or optional 19 cc motor, with integrated accumulation and chain lubrication.

Super Light 500 configuration

500 mm maximum felling diameter, 310 kg mass and 1,100 mm grapple opening; 10 cc saw motor, 18–25 inch guide bar; recommended 210 bar and 100 L/min. Remote-control version includes batteries and charger.

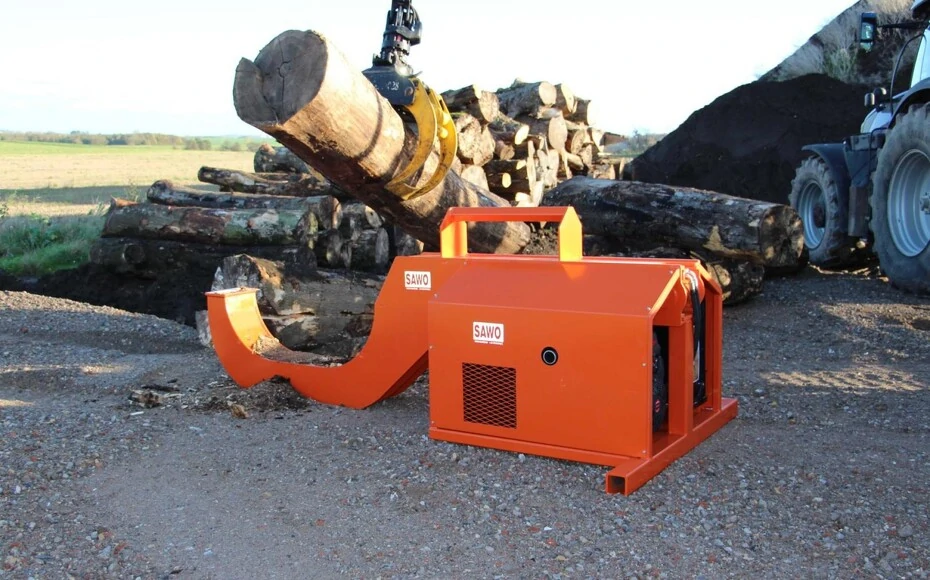

Standard and XL splitter configurations

Standard: 550 kg, 2,565 mm long, 830 mm high, 850 × 410 mm opening. XL: 800 kg, 3,200 mm long, 930 mm high, 1,150 × 410 mm opening. Both specify recommended pressure of 200–250 bar.

XL splitter with hydraulic power pack, November 2020

Remote-controlled 27 hp petrol engine/hydraulic station; 1,350 kg total mass, 3,200 mm length and 1,150 × 410 mm opening. Flow: 100 L/min to 80 bar, 30 L/min up to 250 bar.

NOPA KTA 240 asphalt trailer, February 2021

Insulated half-round tipping body with 3.5 mm Hardox 450 floor, Rockwool insulation and stainless cladding; three BPW 9 t axles. Gross-weight rating omitted because the specification and embedded drawing conflict.

NOPA PTC 300 container trailer, February 2021

30 t gross weight; container-length configurations 6.5–7 m or 7–7.5 m; four BPW 9 t axles, three-way tipping, transfer rails and pneumatic rear locks. Gross weight is not payload.

NOPA CPL 320 container body, February 2021

External length from 5,500 mm and width 2,550 mm; 5 mm Hardox 450 floor with anodised aluminium sides. Hooklift-front conversion and side rollers are optional.

FTS 320 and FTPLH 320 chassis scope

FTS 320 suits 6 × 2 / 8 × 4 chassis; its 26/32 t figures describe vehicle gross weight. FTPLH 320 suits 8 × 4 / triple-axle trucks and has a 5 mm Hardox 450 floor with 4 mm Hardox sides; its 56 t towing-system approval is not body payload.

CELA DTTruck 15 operating envelope

Working height 15 m, outreach 7 m, below-ground reach 2 m and standard basket capacity 230 kg; minimum vehicle gross weight 2.8 t. Maximum reaches and loads depend on the chassis/configuration.

MOFFETT M 4 NX V drive and options

1.4 L Rehlko diesel engine to Stage V; mast heights and four-way steering depend on version. Features marked coming soon in the brochure are not treated as included.

MOFFETT E 4 NX drive and charging

Lithium-ion all-electric drive with onboard or wall charging; four-way steering is configuration-dependent.

Certification scope

ISO 9001, ISO 14001 and ISO 3834-2 certification for SAWO; individual site coverage, certificate editions and validity dates are unspecified. Independent service partners and represented manufacturers have separate certification scope.

Cable-hoist conformity statement

CE-marked cable-hoist equipment with rear emergency stops in the September 2021 CLF configurations.
